Details

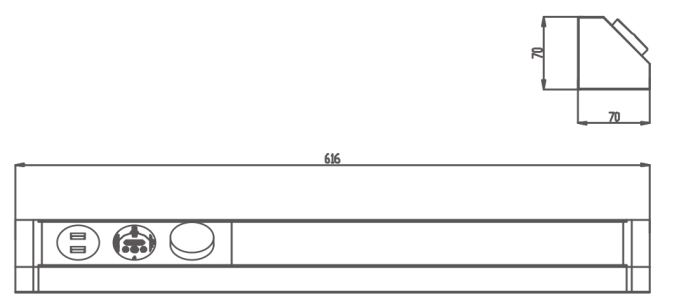

DIMENSIONS:(mm)
FEATURES
· Exclusive designed power box lamp for indoor use only
· Specially deisgn for kitchen and bathroom cabinet use
· Class II protection against electric shock from direct and indirect contact
· SELV output
· Open circuit, short circuit, over load and over temperature protection
· No load power consumptio≤0.5W
· German socket, French Socket,Swiss Socket, England Socket, USB charger, all these can be available
· Aluminium & Plastic housing available
STANDARDS
EN61347-1 EN61347-2-13 EN 55015 EN6100-3-2 EN61000-3-3 EN61547 EN62493
CHARACTERISTICS
RATED INPUT VOLTAGE:AC220-240V 50/60Hz (power factor measured at AC230V and full load)
|
Model No. |
Rated Input voltage |
Rated Output voltage |
Rated current |
Rated load |
L × W× H
|
Approval |
|
BHSL-12CCT-2E |
AC220-240V |
DC 12V(Driver) AC220-240V(SOCKET) |
Max.1.0A(Driver) Max.16A(SOCKET) |
Max.12W(Driver) Max.4000W(SOCKET) |
616×70 × 70mm
|
|
|
BHLLUSB-05201CCT-1E |
AC220-240V |
DC 5V(USB) AC220-240V(SOCKET) |
Max.2.1A(USB) Max.16A(SOCKET) |
Max.10.5W(USB) Max.4000W(SOCKET) |
616 × 70× 70mm
|
