Details

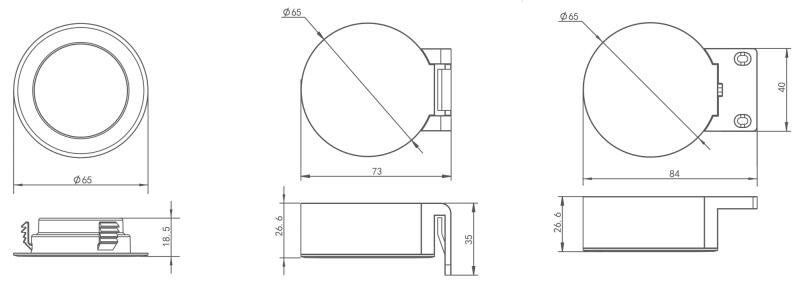

DIMENSIONS:(mm)

FEATURES

· Easy integrate into environment
· High CRI and no glare flat lighitng
· Easy installation, plug and fast connection
· Silver and black colo frame available
· Normal color and CCT available
· For surface mounting-screw fixing
· Material: plastic

STANDARDS

EN 60598-1 EN 55015

CHARACTERISTICS
RATED INPUT VOLTAGE: DC12V/AC220-240V (Power factor measured at DC12V/AC230V and full load)

Model No.	Input Voltage	Power	Lumen	Color Temperature	L×W×H	Approval
BHLL-02CH-1	AC220-240V	2W/2.5W	120lm/200lm	2700K/3000K/4000K/6500K	Φ57.5×18.5mm
BHLL-02CH-C	AC220-240V	2W/2.5W	120lm/200lm	2700K/3000K/4000K/6500K	Φ57.5×18.5mm
BHLL-02CH-S	AC220-240V	2W/2.5W	120lm/200lm	2700K/3000K/4000K/6500K	Φ57.5×18.5mm
