- 2019-08-08
Details

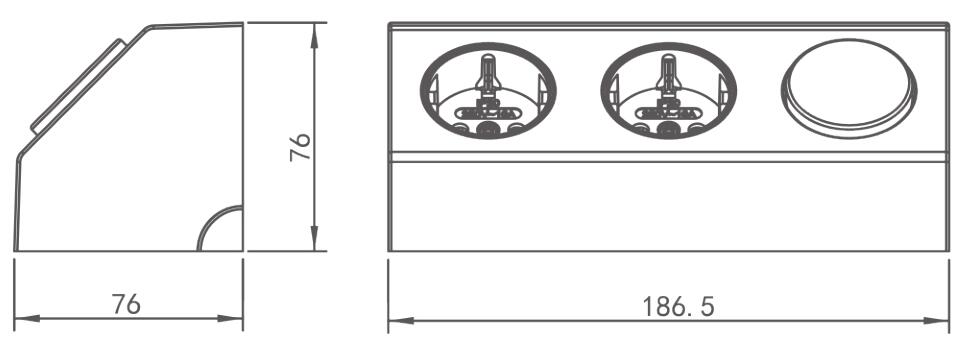

DIMENSIONS:(mm)
FEATURES
· Exclusive designed power box for indoor use only

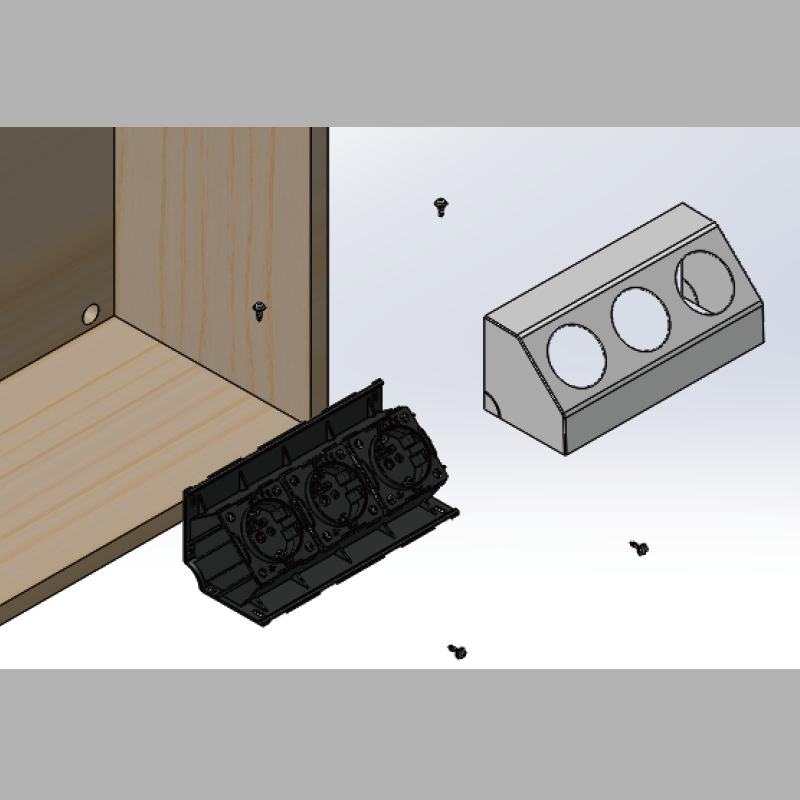

· Specially deisgn for kitchen and bathroom cabinet use
· Class II protection against electric shock from direct and indirect contact
· SELV output
· Open circuit, short circuit, over load and over temperature protection
· No load power consumption ,≤0.3W
· German socket, French Socket.Swiss Socket, England Socket, USB charger, all these can be available
· Aluminium & Plastic housing available
STANDARDS
EN61347-1 EN61347-2-13 EN 55015 EN6100-3-2 EN61000-3-3 EN61547 EN62493
CHARACTERISTICS
RATED INPUT VOLTAGE:AC220-240V 50/60Hz (power factor measured at AC230V and full load)
|
Model No |
Rated Input voltage |
Rated Output voltage |
Rated current |
Rated load |
LxWxH |
Approval |
|
BHTB-0812-2E |
AC220-240V |
DC12V |
Max.0.67A |
8W |
186.5x76x76mm |
|
|
BHTB-0812-2F |
AC220-240V |
DC12V |
Max.0.67A |
8W |
186.5x76x76mm |
|
|
BHTB-0812-2S |
AC220-240V |
DC12V |
Max.0.67A |
8W |
186.5x76x76mm |
|
|
BHTB-1512-2E |
AC220-240V |
DC12V |
Max.1.25A |
15W |
186.5x76x76mm |
|
|
BHTB-1512-2F |
AC220-240V |
DC12V |
Max.1.25A |
15W |
186.5x76x76mm |
|
|
BHTB-1512-2S |
AC220-240V |
DC12V |
Max.1.25A |
15W |
186.5x76x76mm |
