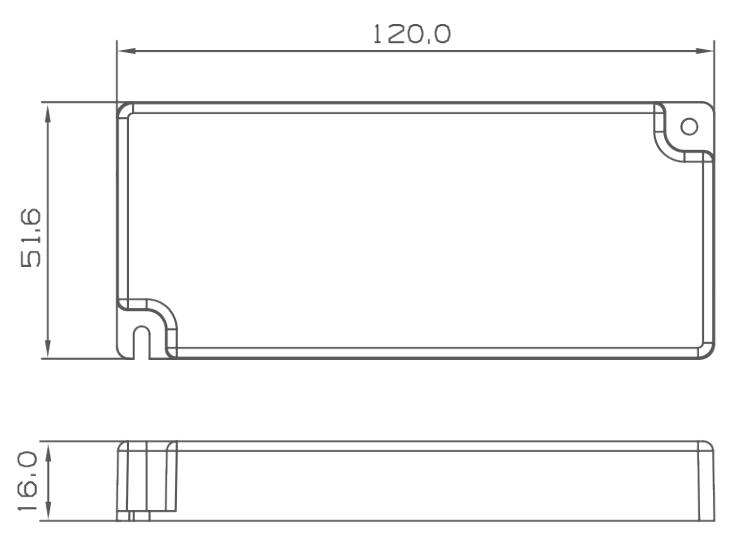

DIMENSIONS:(mm)

FEATURES

· Independent power supply for constant voltage LED lamp
· Special design screw terminal for field connection
· Class II protection against electric shock from direct and indirect contact
· SELV output
· Open circuit, short circuit, over load and over temperature protection
· Auto restart after fault conditions removal
· No load power consumption≤0.3W

STANDARDS

EN61347-1  EN61347-2-13  EN 55015  EN6100-3-2  EN61000-3-3  EN61547  EN62493

CHARACTERISTICS
RATED INPUT VOLTAGE:AC220-240V 50/60Hz (power factor measured at AC230V and full load)

Model No	Constant output voltage	Load	λ	ta	tc	LxWxH	Approval
BELD-1512V-1	DC12V	0-15W	0.50C	-20-45℃	85℃	120x51.6x16mm
BELD-1524VL-1	DC24V	0-15W	0.50C	-20-45℃	85℃	120x51.6x16mm
BELD-2012VL	DC12V	0-20W	0.50C	-20-45℃	85℃	120x51.6x16mm
BELD-2024VL	DC24V	0-20W	0.90C	-20-45℃	85℃	120x51.6x16mm
